技術參數表
口徑
轉速
壓力
溫度
介質
備注：
技術參數數據為最大值,并不能同時使用,；
超出技術參數范圍的使用工況請咨詢德威邇公司技術部：0632-5832779-603
產品特點

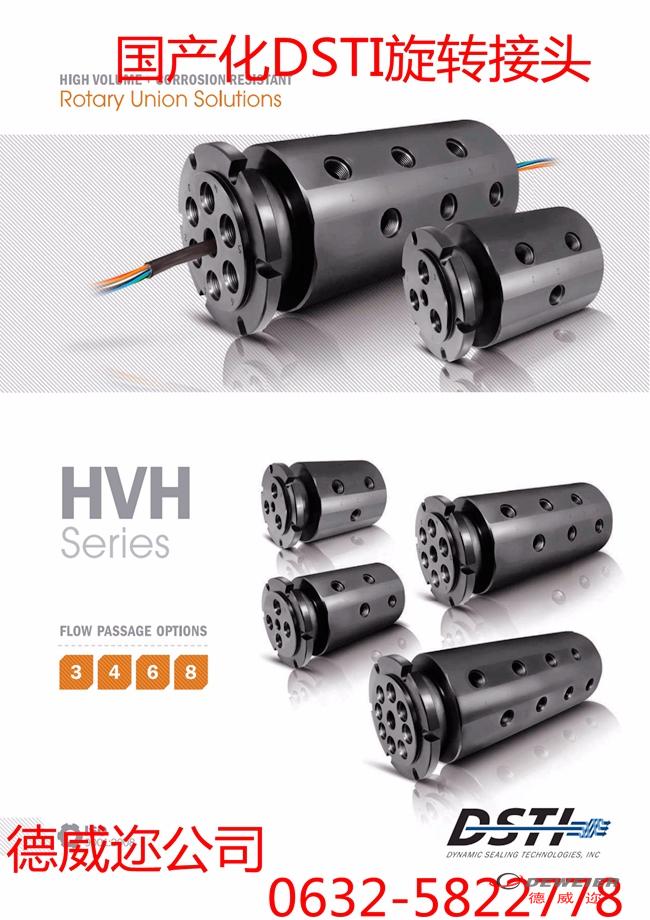

HVH Series Rotary Unions:HVH系列旋轉接頭可在3,，4,，6和8通道,。HVH系列旋轉接頭提供更大的流動通道和增加流量比GP系列。HVH系列旋轉接頭適用于真空和雙向壓力高達5000 psi和特征保護球軸承的設計適用于惡劣的室外環境,。 HVH系列旋轉接頭特點：重型合金鋼結構耐腐蝕表面氮化處理,，可與電滑環選項電源/數據傳輸。
產品選型表
CatalogModel
|
Max. Pressure¹ |
5000 PSI (345 BAR) |
|
Max. Vacuum¹ |
30 HG |
|
Max. Rotational Speed¹ |
50 RPMPlease note operational life is dependent upon both rotational speed and duty cycle. Contact DSTI if your application requires operating close to the maximum rotational speed with a continuous duty cycle. |
|
Temperature Range¹ |
0° F to 220° F (-18° C to 105° C)² |
|
Part # |
Thru Bore |
Overall Diameter |
Overall Length |
Min Torque* |
Passage Size |
Connection |
Part Downloads |
Quote |
|
HVH-3531 |
0.750 |
6.438 |
9.550 |
50 |
0.750 |
#12 SAE |
|
|
|
HVH-3631 |
0.750 |
6.438 |
10.303 |
50 |
0.875 |
#16 SAE |
|
|
|
HVH-3731 |
0.750 |
7.438 |
11.370 |
150 |
1.250 |
#20 SAE |
|
|
|
HVH-3831 |
0.750 |
8.938 |
12.293 |
150 |
1.500 |
#24 SAE |
